Installing Your Motion Detector

Motion Detector Install Guide PDF

Motion detectors are a great way to monitor large areas in your home or areas with multiple entry or exit points, such as living rooms and bedroom hallways.

They are designed to monitor and pick up any movement once the system is armed and you have left the residence.

Installation Parts

  • Motion detector
  • 2 different mounting backplates, one for a flat wall install and one for a corner install
  • Mounting screws
Motion detector parts
Corner mount backplate
Flat mount backplate

Choosing a location

Your motion detector is designed to go against flat surfaces or corners covering large areas. It has a detection range of 39 feet.

When picking a location:

  • Mount your device about 7-8 feet high.
  • Make sure your surface is stable and solid
  • Do not have your motion detector face windows or other sources of direct light or air drafts, if it can be avoided
  • Avoid placing near ceiling fans, heating ducts, or any high-voltage electrical lines

Your motion detector is pet immune, distinguishing between humans and pets weighing up to 85 pounds.

However, if you have a cat at home, avoid places where it can climb near the detector, in order to minimize false alarms. If you have questions regarding this, please contact a virtual Smart Home Pro.

Installation Instructions

1. Place your backplate against the wall or corner, depending on your choice. The word “up” should be at the top within the backplate, with the pin on the right side. Otherwise, your motion detector will be upside down.

Placing corner mount
Placing flat mount

2. Use the 2 screws to secure the backplate. Make sure the tops of the screws are flat when tightened.

Screwing in backplate

3. After you’ve screwed in your chosen backplate, slide the motion detector onto the backplate upward until you hear a click.

Placing cover

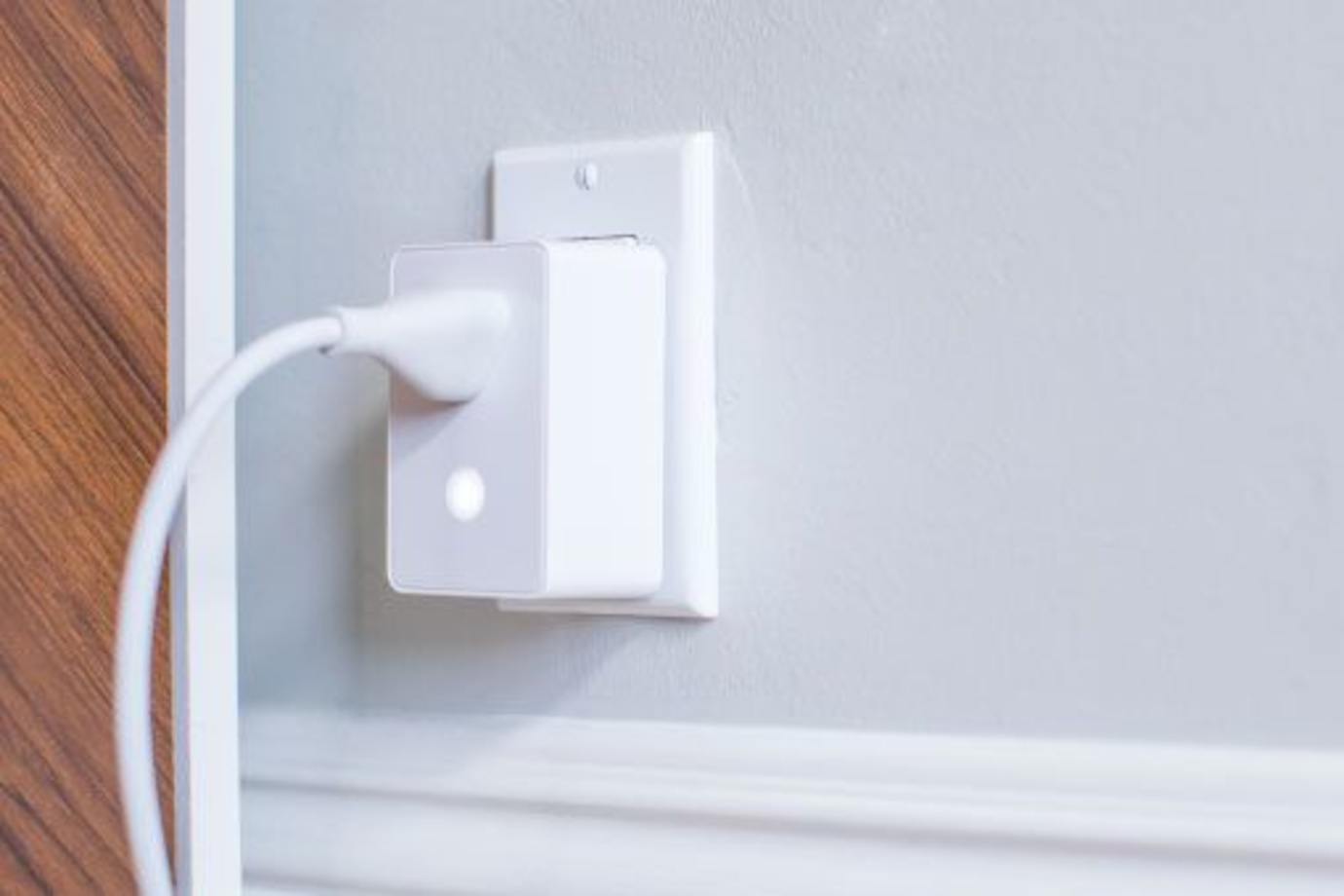

Installing Your Lamp PlugYour Lamp Plug lets you turn a lamp on and off, or dim it (if the lamp has a dimming bulb), using your control panel or mobile app. It plugs into any standard outlet.
Installing Your Lamp Plug

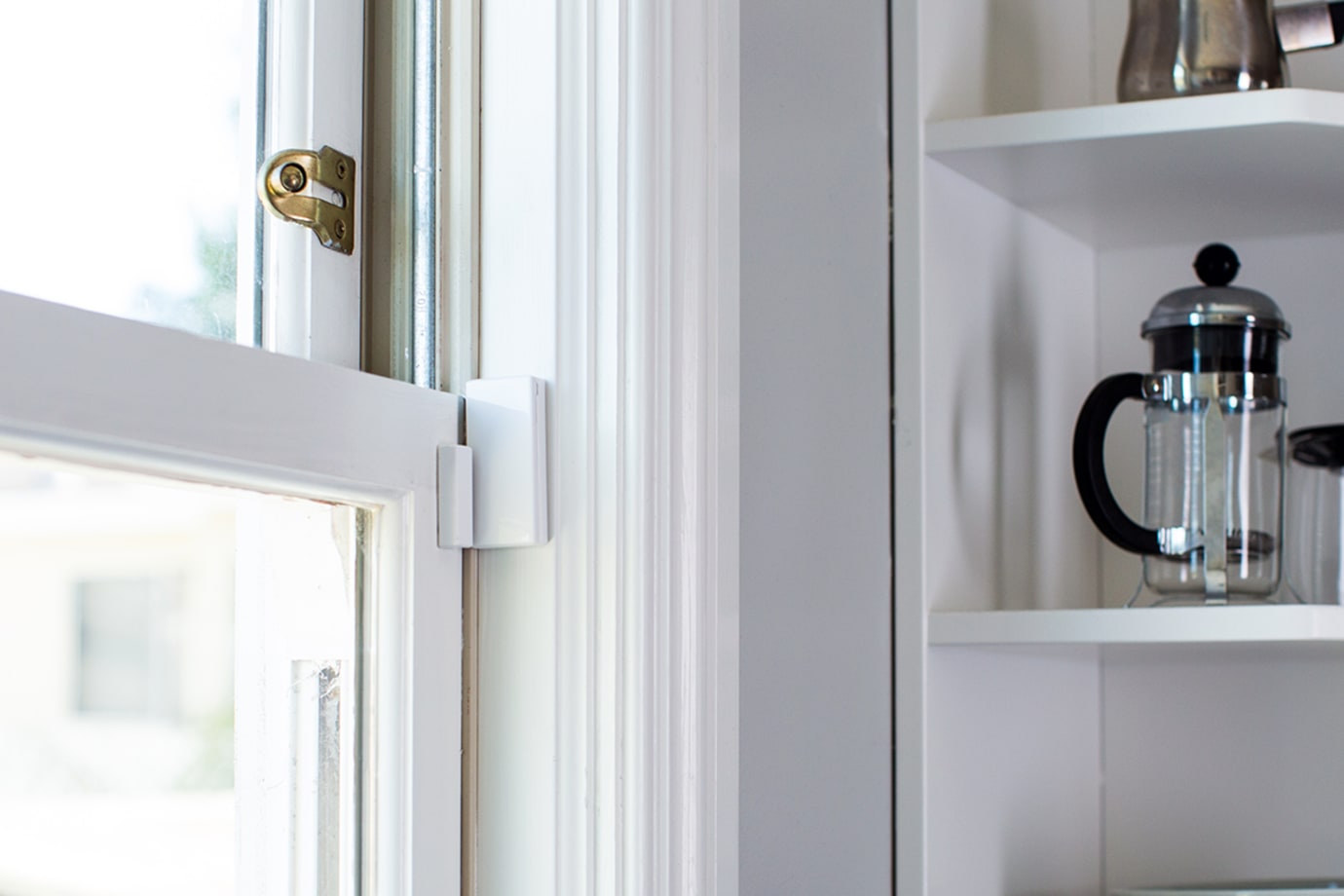

Installing Your Entry SensorsEntry sensors help protect your home's main entry points by alerting you when a door or window are open
Installing Your Entry Sensors

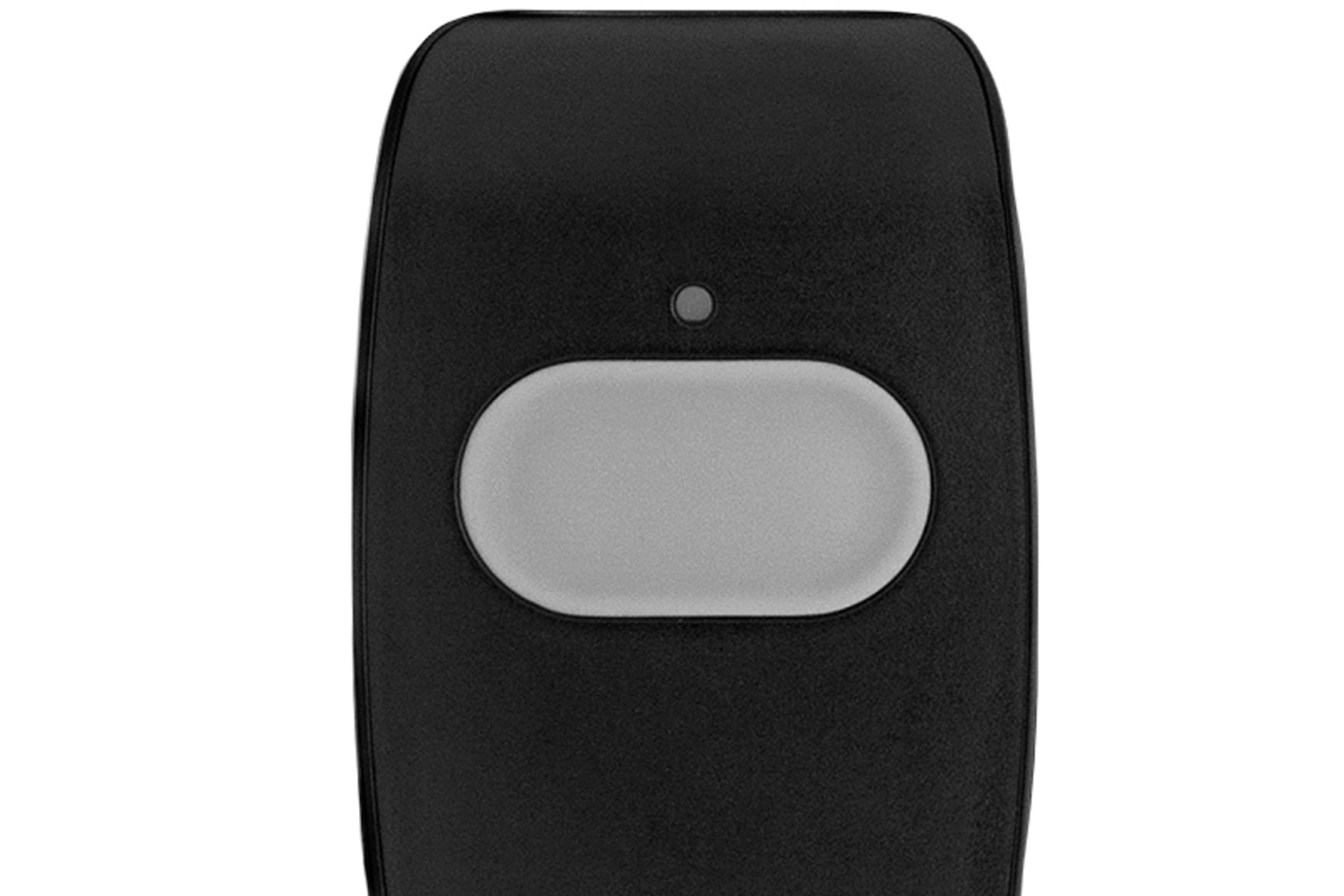

Installing Your Panic ButtonWhen pressed within range of your panel, the panic button alerts your system to dispatch medical, fire, or police first responders in case of an emergency.
Installing Your Panic Button

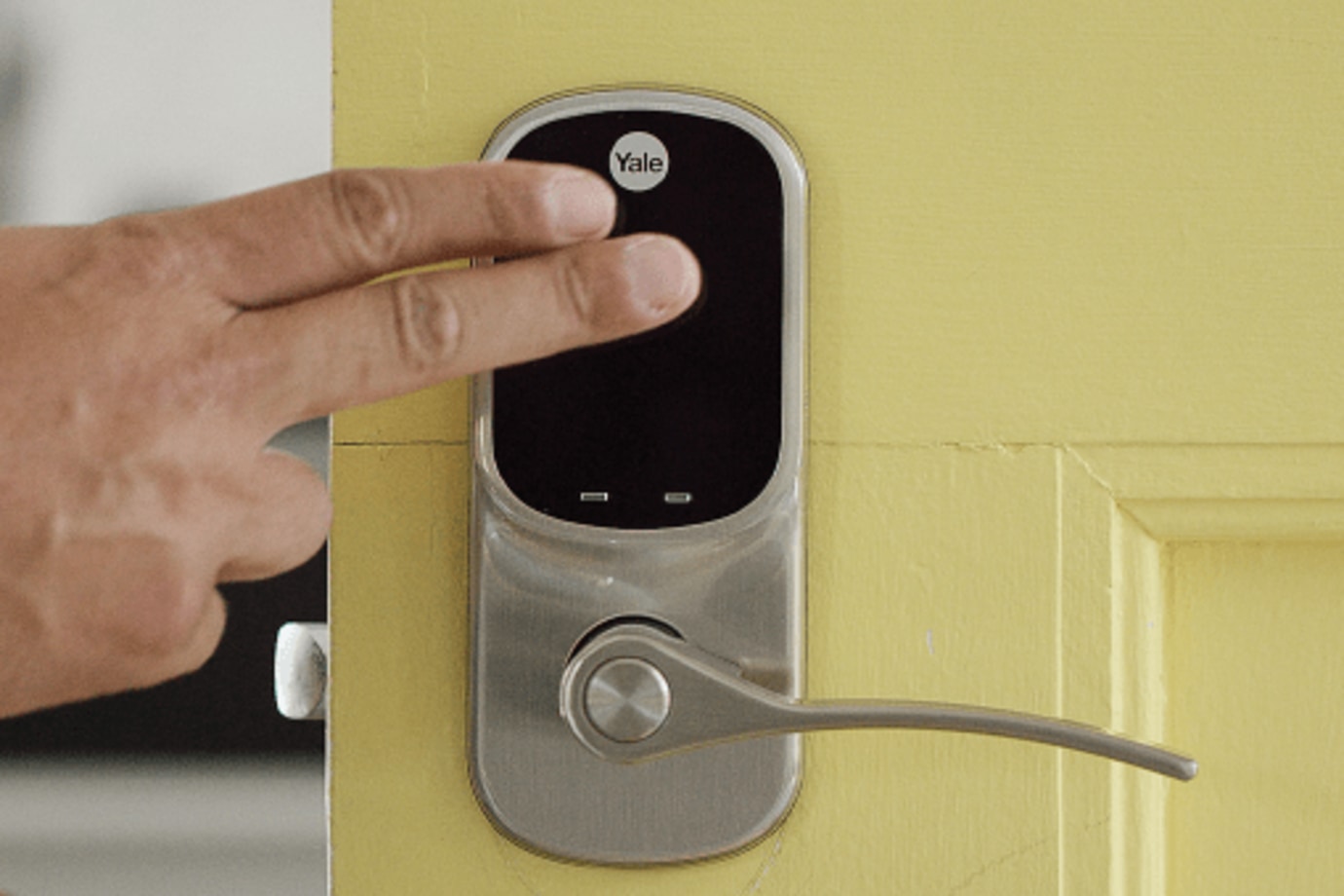

Installing Your Smart Door Lock With LeverYour keyless Smart Door Lock with a lever lets you conveniently unlock and lock your door with a backlit touchscreen keypad, rather than having to carry around keys that can get lost.
Installing Your Smart Door Lock With Lever

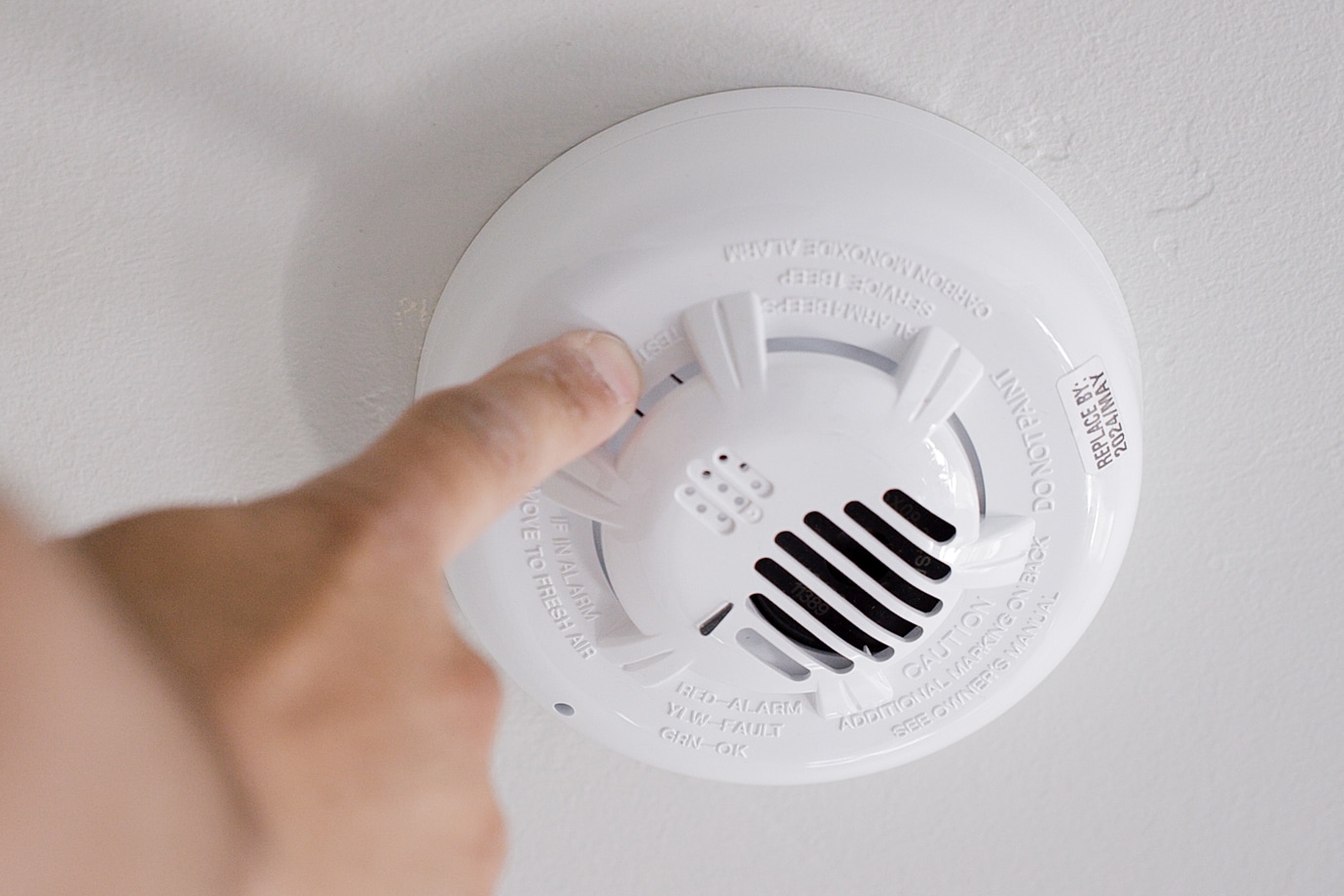

Installing Your Carbon Monoxide DetectorYour carbon detector alerts you to the presence of carbon monoxide in your home.
